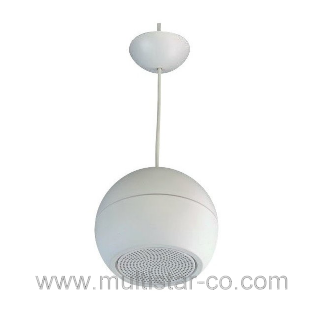

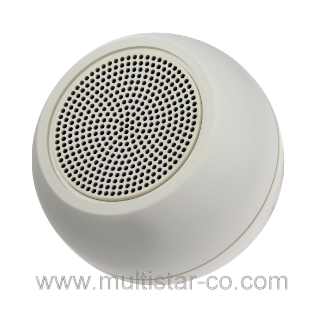

OD-506FT

Add to Inquiry Open Inquiry

Rated Impedance: 625Ω(16W), 1250Ω(8W), 2500Ω(4W)
Rated Power: 16 W
Max. Power: 25 W
Sensitivity: 88 dB ± 3dB, 1W/1M

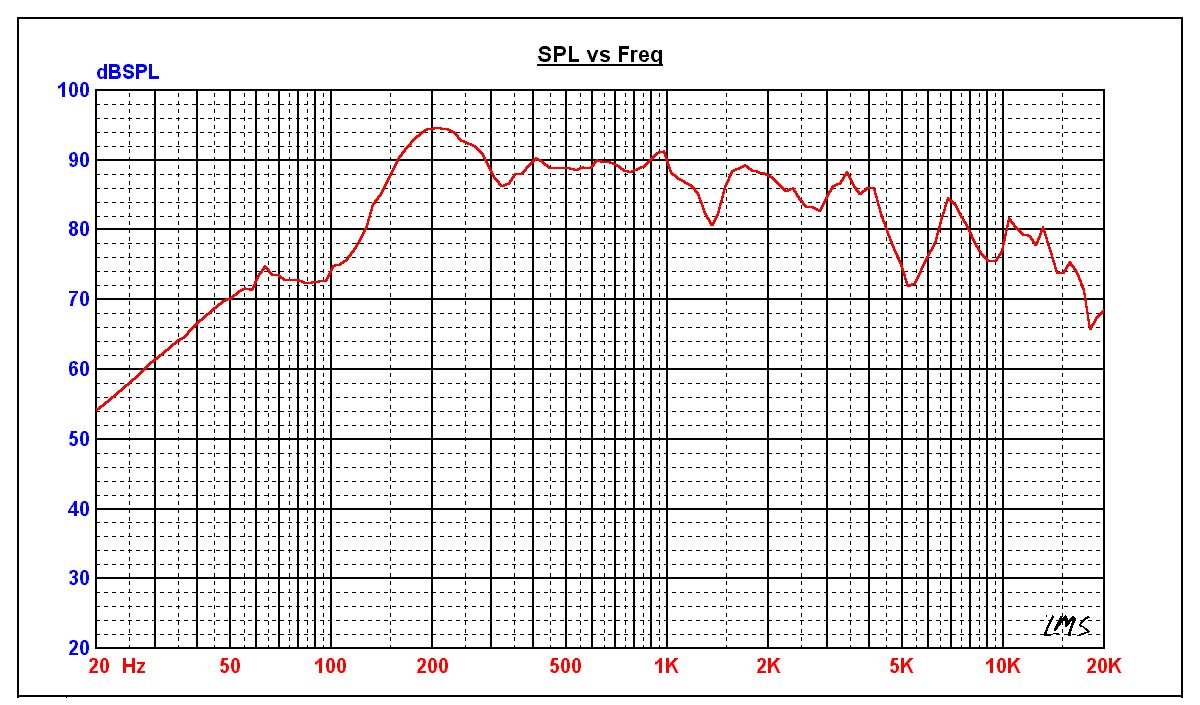

Frequency Range: 100 Hz ~ 15 KHz  -10dB / ±20% Hz
Whistling : 50 Volts  at  16 W Tap
Rated Voltage: 100 V
Power Taps: 16-8-4W
Termination: Cable
Cabinet: ABS, RAL 9010
Baffle: ABS, RAL 9010
Mesh Grille: ABS, RAL 9010
Dimension: 185Фx 157 H mm
Weight: 1.46 kg
